Volkswagon VW with Vacuum capabilities

Volkswagon VW 1200, 1300, 1600, Type 1, 2 ,3, 4 w/vacuum (VW-R-V) W/SPACER

123Ignition
SKU:
VW 4-R-V
Availability:
Usually ships within 1-3 business days
$469.95
$511.45
(You save $41.50 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

VW 1200, 1300, 1600, Type 1, 2 & 3 etc with Vacuum

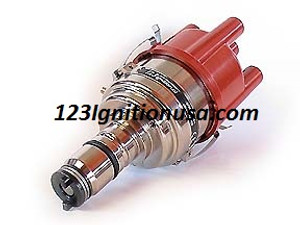

123\VW-R-V the 123\VW-R-V is created in cooperation with VW-professionals ; this has resulted in a product that can be used in all type '1', '2' and '3' cars, AND that can be used for Porsche 356 and Porsche 912.

The unit comes standard with vacuum-advance, but is also available without. ( 123\VW-R )

The installion instructions show a cross-reference between the original Bosch-number and the setting of the 123\VW-R-V.
There is also a list, that links VW-engine-numbers with the required setting of the 123ignition.

Instruction manual misprint:

Curve D advance starts should be 800 instead of 1600 rpm.
installation manual

SPECIFICATIONS
direct. : CW (topview)
voltage : 4,0-15,0 Volts
range : 500 - 7000 rpm
temperature : -30 to 85 Celsius
coil : stock or High Energy coil
  primary coil NOT below 1,0 ohm
dwell : constant current, fully autom.
time-out : after 1 second current is switched off
spark-bal. : better than 0,5 degr. crankshaft
vacuum : advance starts at 5 inchHg
  stops at 10 degr. @ 10 inchHg
  gearshift retard > 17 inchHg
max.advance : 45 degr. crankshaft
wiring : red = +6V or +12V, black = '-' coil
