Volkswagon VW No Vacuum - Also has curves for Porsche 356 and 912 all with no vacuum - Has correct spacer

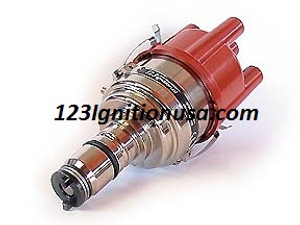

Volkswagon VW 1200, 1300, 1600, Type 1, 2,3, 4 & Porsche 356 / 912 123ignition Distributor Switched no vacuum (VW-R) W/SPACER

123Ignition
SKU:
VW 4-R
Availability:
Usually ships within 1-3 business days
$449.95
$494.95
(You save $45.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description



123\VW-4-R - This has no vacuum

for Volkswagen > 1200, 1300, 1600, Type 1, 2 & 3 also Porsche 356
The 123\VW-4-R is created in cooperation with VW-professionals ; this has resulted in a product that can be used in all type '1', '2' and '3' cars.

For the VW 411(L)E, VW 412 (L)E and VW 1600E with Bosch 'D-jetronic' injection-systems : order the 123\VW-4-R-V-IE.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual

Curve table data
123\VW-4-R
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 1200 3800 24,0 80 200 10,0 0231.170.034 one-fits-all-curve! 1200,1300,1500
1 1200 3800 24,0 80 200 10,0 0231.170.034 as curve #1 optimised for LPG/E85
2 1200 3800 24,0 80 200 10,0 043.905.205 1 1300M9,181/M157,3/1500,3/1500S
3 1200 3800 24,0 80 200 10,0 043.905.205 as curve #2 optimised for LPG/E85
4 - - - - - - - -
5 1300 4000 22,0 75 225 10,0 021.905.205F, 113.905.205AC, 113.905.205AE 1 1300M9,1/1600M9
6 1300 3800 29,0 140 225 10,0 211.905.205R, 113.905.205AJ, 311.905.205AJ 1 1300
7 1300 3800 23,0 140 225 10,0 113.905.205AK 1 1300M9
8 1100 3600 31,0 100 300 9,0 113.905.205AA, 113.905.205P 1 1500M9,1/1500M157
9 1300 3800 23,0 90 200 10,0 113.905.205AL, 211.905.205S, 021.905.205G J 181,2/1600,2/1700
A 1300 3800 23,0 140 190 6,0 113.905.205AN, 211.905.205Q, 113.905.205AH 2 1600M157
B 1000 3500 25,0 100 300 9,0 0181.905.205, 311.905.205T 3 1600
C 0800 3100 35,0 100 300 9,0 VE4BRS383, VJ4BR9 & 18, VJR4BR18 Porsche 356
D 0800 3100 30,0 100 300 9,0 0231.129.022 JFR4 Porsche 912
E 1100 3200 30,0 100 300 9,0 0231.129.031 for tuning
F 1100 2600 21,0 100 300 9,0 0231.129.009 for tuning
