Renault - Old Style - available in Switched, TUNE USB and TUNE+ Bluetooth - Special Order Only

Renault - Old Style - Special Order 7-30 day wait

123Ignition
SKU:
Ren Old
Availability:
Usually ships within 1-3 business days
$419.95
$461.95
(You save $42.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description


Wiring diagram negative earth

Wiring diagram negative earth



123\RENAULT-OLD-4-R

(for Renault)

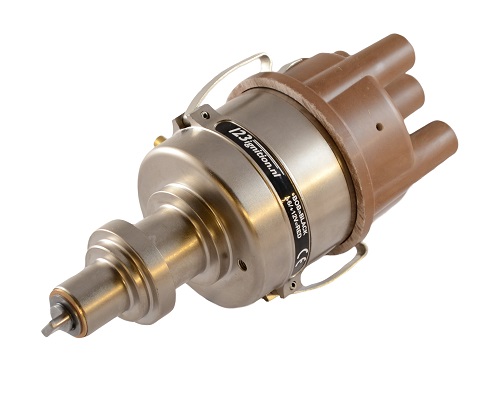

The 123\RENAULT-OLD-4-R is a distributor, specifically targeted for the "Ventoux"-engines as used in the older Renault 4 for example. It contains all the curves for carbureted-engines as originally specified by Renault.

 123\RENAULT-OLD-4-R > 4CV, Juvaquatre, Dauphine, Floride, Caravelle, Estafette, R4, R5, R6, Alpine A108

The 123\RENAULT-OLD-4-R is a distributor, specifically targeted for the "Ventoux"-engines as used in the older Renault 4 for example. It contains all the curves for carbureted-engines as originally specified by Renault.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual

Curve table data
123\RENAULT-OLD-4-R
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 1300 5000 18,0 75 200 14,0 R-287 & D83 RENAULT-MOTEUR B1B
1 1300 3600 22,0 75 300 10,0 R-284 RENAULT-MOTEUR 800 / 839
2 1300 5000 20,0 75 300 10,0 R-285 RENAULT-MOTEUR 839
3 900 5000 24,0 75 300 10,0 R-240 RENAULT-MOTEUR 839
4 1000 3600 28,0 75 300 10,0 R-252 RENAULT-MOTEUR 800
5 1000 5000 36,0 75 300 10,0 R-253 RENAULT-MOTEUR 680
6 1500 3700 25,0 75 300 10,0 A-46 RENAULT-MOTEUR 680 / 800
7 1200 3700 25,0 75 300 10,0 ST RENAULT-MOTEUR 680 / 800
8 1300 5000 18,0 75 200 14,0 - -
9 1300 5000 18,0 75 200 14,0 - -
A 1300 5000 18,0 75 200 14,0 - -
B 1300 5000 18,0 75 200 14,0 - -
C 1300 5000 18,0 75 200 14,0 - -
D 1300 5000 18,0 75 200 14,0 - -
E 1300 5000 18,0 75 200 14,0 - -
