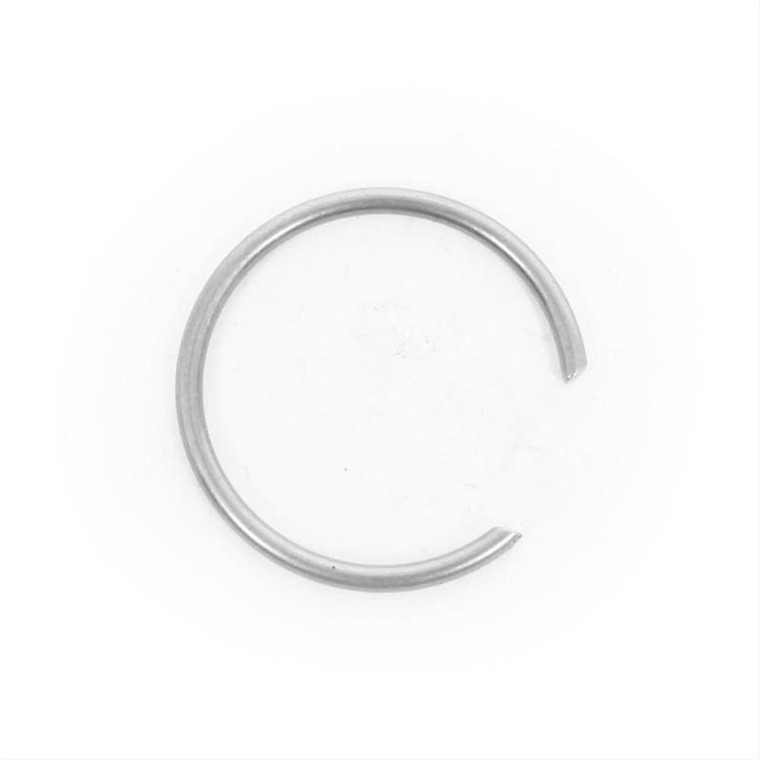

Photo - Primary

JE Pistons Wire Lock .787 x 0.50 Retaining Clip - 787-050-MW

JE Pistons
SKU:
JEP787-050-MW
|
UPC:
193564006257
Availability:
Regularly stocked product
$4.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Most JE shelf pistons include double spiro locks as standard equipment. These locks are installed by spreading the lock between 1/8" and 1/4" and rotating the lock into the groove in the piston pin boss. Wire locks are installed in much the same manner but require chamfered wrist pins. Wire locks tend to spread side loads over more of the piston pin boss area and are considered to be a stronger method of holding the pin in place. Hook wire locks have a built in hook at the end gap. The purose for this style of wire lock is to prevent rotation within the lock groove itself. Tru arc locks fall between these two and can be used with the stock sharp edge wrist pins. The advantage of tru-arc locks is ease of installation and they can be re-used unlike spiro locks, however they are not recommended for medium to high horsepower applications.

This Part Fits:

YearMakeModelSubmodel
1996-2004HondaXR400RBase
2014-2015HusqvarnaFC450Base
2014-2016HusqvarnaFE450Base
2003-2006KawasakiKFX400Base
2004-2009KawasakiKFX700Base
2004-2006KawasakiKVF700 Prairie 4x4Base
2005-2011KawasakiKVF750 Brute Force 4x4iBase
2013-2015KTM450 EXCBase
2005-2006KTM450 SMRBase
2013-2016KTM450 SX-FBase
2013-2015KTM450 XC-FBase
2013-2015KTM450 XC-WBase
2000-2002KTM520 EXCBase
2000-2002KTM520 SXBase
2003-2007KTM525 EXCBase
2004-2006KTM525 SMRBase
2003-2006KTM525 SXBase
2014PolarisRZR 800Base
2000-2016SuzukiDR-Z400Base
2016-2017YamahaWR450FBase
2004-2013YamahaYFZ450Base
2009-2019YamahaYFZ450RBase
2014-2017YamahaYZ450FBase
2016-2017YamahaYZ450FXBase
Additional Information
CARB:
This product is not CARB Legal and not for sale in California
Clearance Item:
N
MPN:
787-050-MW
