the 123\DS-R is essentially the same unit as the 123\DS-A : it contains the same set of 16 advance-curves. Two curves are dedicated to the Traction-Avant engines, the 'Perfo' and the '11D'. For the 'H'-van there are two advance-curves too, both for the 'H78'-engine. One of these has a so-called 'rev-limiter', to prevent unwanted engine-damage. Might you require vacuum-advance : specify a '123\DS-R-V'.

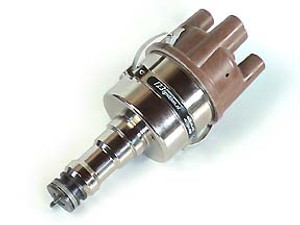

Citroen DS-R, Traction Avant and H-van

123Ignition
SKU:
DS-R
Availability:
Usually ships within 1-3 business days
$435.95
$479.55
(You save $43.60 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

for Citroen DS, Traction Avant and H-van

123\DS-R the 123\DS-R has a straight up cap. It is essentially the same unit as the 123\DS-A : it contains the same set of 16 advance-curves.

Two curves are dedicated to the Traction-Avant engines, the 'Perfo' and the '11D'.

For the 'H'-van there are two advance-curves too, both for the 'H78'-engine. One of these has a so-called 'rev-limiter', to prevent unwanted engine-damage.

Might you require vacuum-advance : specify a '123\DS-R-V'.
installation manual


SPECIFICATIONS
direct. : CW (topview)
voltage : 4,0-15,0 Volts
range : 500 - 7000 rpm
temperature : -30 to 85 Celsius
coil : stock or High Energy coil
  primary coil NOT below 1,0 ohm
dwell : constant current, fully autom.
time-out : after 1 second current is switched off
spark-bal. : better than 0,5 degr. crankshaft
vacuum : advance starts at 5 inchHg
  stops at 10 degr. @ 10 inchHg
  gearshift retard > 17 inchHg
max.advance : 45 degr. crankshaft
wiring : red = +6V or +12V, black = '-' coil
