Volvo 164, Marcos 3000GT, Volvo C303, Volvo Penta AQ165/AQ170 etc. 123\B30-R-V-IE the 123\B30-R-V-IE is a unit that fits the B30 6-cylinder Volvo carburetor and injection engines. It fits cars, trucks and boats (VOLVO PENTA) It has advance-curves for B30-A, B30-E, B30-F, B30-VALP & B30-Penta engines. The unit also offers optimised LPG / Ethanol-curves for each engine. Injection-outputs are standard for this product. installation manual SPECIFICATIONS direct. : CCW (topview) voltage : 4,0-15,0 Volts range : 500 - 7000 rpm temperature : -30 to 85 Celsius coil : stock or High Energy coil primary coil NOT below 1,0 ohm dwell : constant current, fully autom. time-out : after 1 second current is switched off spark-bal. : better than 0,5 degr. crankshaft vacuum : advance starts at 5 inchHg stops at 10 degr. @ 10 inchHg gearshift retard > 17 inchHg max.advance : 45 degr. crankshaft wiring : red = +6V or +12V, black = '-' coil

B30 Volvo w/D-Jetronic Fuel injection 164, Marcos 3000GT, Volvo C303, Volvo Penta AQ165/AQ170 (Switched Pre programmed w/injector inputs)

123Ignition
SKU:
B30 R-V-IE
Availability:
Usually ships within 1-3 business days
€471.59
€492.55
(You save €20.96 )
(No reviews yet)
Fixed Shipping Cost:
€19.05
Current Stock:
Adding to cart… The item has been added
Description

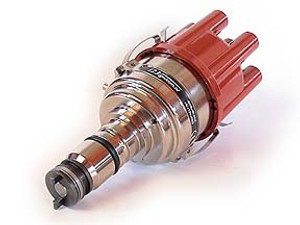

123\VOLVO-B30-6-R-V-IE

for Volvo > 164, Marcos 3000GT, C303, Penta AQ165/AQ170 etc.
the 123\VOLVO-B30-6-R-V-IE is a unit that fits the B30 6-cylinder Volvo carburetor and injection engines. It fits cars, trucks and boats (VOLVO PENTA)

It has advance-curves for B30-A, B30-E, B30-F, B30-VALP & B30-Penta engines.

The unit also offers optimised LPG / Ethanol-curves for each engine.

Injection-outputs are standard for this product.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 6
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: starts at 100 mmHg, ends at 10 degr. @ 300 mmHg
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual

Curve table data
123\VOLVO-B30-6-R-V-IE
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 1000 3700 23,0 100 300 10,0 BOSCH 0231.142.001, 0231.308.005 VOLVO B30A
1 1000 3700 27,0 100 300 10,0 BOSCH 0231.142.001, 0231.308.005 VOLVO B30A LPG/E85
2 1000 3200 21,0 100 300 10,0 BOSCH 0231.302.010, 0231.301.010 VOLVO B30E
3 1000 3200 24,0 100 300 10,0 BOSCH 0231.302.010, 0231.301.010 VOLVO B30E LPG/E85
4 1000 2800 21,0 100 300 10,0 BOSCH 0231.170.087 B30E with K-camshaft
5 1000 2800 24,0 100 300 10,0 BOSCH 0231.170.087 B30E with K-camshaft LPG/E85
6 1000 3200 21,0 100 300 10,0 BOSCH 0231.301.010, 0231.301.014 B30F
7 1000 3200 24,0 100 300 10,0 BOSCH 0231.301.010, 0231.301.014 B30F LPG/E85
8 1200 4500 25,0 100 300 10,0 BOSCH 0231.305.058 VOLVO B30-VALP
9 1000 4000 25,0 100 300 10,0 BOSCH 0231.305.058 VOLVO B30-VALP LPG/E85
A 1000 2500 20,0 100 300 10,0 BOSCH 0231.121.008 VOLVO B30-PENTA
B 1000 2500 23,0 100 300 10,0 BOSCH 0231.121.008 VOLVO B30-PENTA LPG/E85
C 1000 2500 20,0 100 300 10,0 BOSCH 0231.311.002 VOLVO B30-PENTA
D 1000 2500 20,0 100 300 10,0 BOSCH 0231.311.002 VOLVO B30-PENTA LPG/E85
E 1000 2500 20,0 100 300 10,0 BOSCH 0231.116.054, 0231.116.060 VOLVO B30-PENTA
F 1000 2000 20,0 100 300 10,0 BOSCH 0231.116.054, 0231.116.060 VOLVO B30-PENTA LPG/E85
