Volvo Alfa 4cyl B16 TUNE PC programmable

Alfa 4cyl Pc Programmable (USB cable sold separate)

123Ignition
SKU:
TUNE 4-R-V-D
Availability:
Usually ships within 1-3 business days
$524.95
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

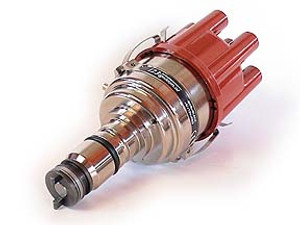

123\TUNE-4-R-V-D

for Alfa Romeo > Giulia, Spider, Bertone, Duetto
The USB programmable 123\TUNE-4-R-V-D is designed for the Alfa 4 cylinder engines like: Giulia Nova, Spider & Bertone 2000, the Duetto and many others.If you want to tune your engine, or you have an engine for which there is no standard distributor available..... And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you're driving on two different fuels, like regular fuel with LPG or with Ethanol
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: Two programmable advance curves
Programmable: By Windows PC Software via mini USB cable
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = '-' coil, blue = ground, yellow = curve selector
latest software: 123\TUNE  version 1.8.4 (9 Mb installer for Windows)


Installation manual
