Renault 4 cyl distributor, Switched Pre programmed (Special Order Only) specifically targeted for the "TX and TS"-engines as used in Renault 16. It contains all the curves for carbureted-engines as originally specified by Renault. The unit offers a maximum total of 16 advance-curves to be selected by the end-user.

Renault 4 cyl Switched Pre Programmed > TX and TS engines, Moteur 807, 843 "Special Order Only" 7 to 30 day wait

123Ignition
SKU:
123\REN16-TX-TS-4-R-V
Availability:
Usually ships within 1-3 business days
$489.95
$538.95
(You save $49.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description



123\REN16-TX-TS-4-R-V

for Renault > TX and TS engines, Moteur 807, 843

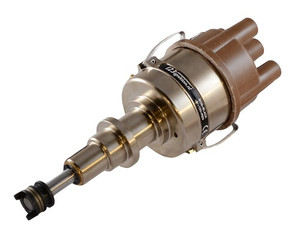

The 123\REN16-TX-TS-4-R-V is a distributor, specifically targeted for the "TX and TS"-engines as used in Renault 16. It contains all the curves for carbureted-engines as originally specified by Renault.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: starts at 100 mmHg, ends at 10 degr. @ 300 mmHg
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual

Curve table data
123\REN16-TX-TS-4-R-V
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 900 5200 36,0 75 300 14,0 R-234 & D59 MOTEUR 807-01
1 1100 5000 36,0 75 300 14,0 R-243 & D59 MOTEUR 807-01/03/04, 843-01
2 1100 5000 36,0 100 300 18,0 R-243 & D60 MOTEUR 807-10
3 1200 5000 34,0 100 300 22,0 R-244 & D61 MOTEUR 807-01/03/05
4 800 5000 37,0 100 300 18,0 R-245 & D60 MOTEUR 807-02/03/05
5 900 4500 33,0 75 300 14,0 R-266 & D59 MOTEUR 807-05/06
6 1100 4500 30,0 100 300 18,0 R-273 & D60 MOTEUR 807-05/06, 843-02
7 1000 4000 29,0 100 300 10,0 custom curve 2000 / 12
8 1000 4000 29,0 100 300 10,0 custom curve 2000 / 14
9 1000 4000 29,0 100 300 10,0 custom curve 2000 / 16
A 1000 4000 32,0 100 300 10,0 custom curve 2000 / 13
B 1000 4000 32,0 100 300 10,0 custom curve 2000 / 15
C 1000 4000 32,0 100 300 10,0 custom curve 2000 / 17
D 1000 4000 35,0 100 300 10,0 custom curve 2000 / 14
E 1000 4000 35,0 100 300 10,0 custom curve 2000 / 16
F 1000 4000 35,0 100 300 10,0 custom curve 2000 / 18
