Lancia Flaminia Switched Lancia 4-R no vacuum - Special Order only!

Lancia Flaminia Switched Lancia 4-R no vacuum - Special Order only!

123Ignition
SKU:
Lancia 4-R Switched no vacuum
Availability:
Usually ships within 1-3 business days
$435.95
$479.55
(You save $43.60 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

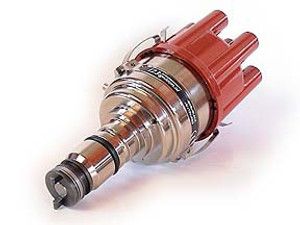

123\LANCIA-4-R

for Lancia > Fulvia

The 123\LANCIA-4-R is designed with the help of Lancia enthusiasts. As these cars are becoming quite rare, we have chosen to introduce a product that offers all the necessary advance-curves, but that may need some fiddling before it can be mounted.
For the Fulvia this means, that the gearwheel from the original distributor needs to be replaced. (which is an easy job as everything is prepared by us)


The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: starts at 100 mmHg, ends at 10 degr. @ 300 mmHg
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual

Curve table data
123\LANCIA-4-R
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.000
1 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.100
2 1000 3200 15,0 100 300 10,0 MARELLI S105C FULVIA 818.100/130/140/342/303/302/282
3 0800 5400 20,0 100 300 10,0 MARELLI S139A FULVIA 818.540 & var.1016 mot.
4 0600 4000 26,0 100 300 10,0 MARELLI FLAVIA 815.000/200 315.000
5 0600 3700 24,0 100 300 10,0 MARELLI FLAVIA 815.100/300/500
6 0500 5000 24,0 100 300 10,0 MARELLI FLAVIA 815.400
7 1200 4000 24,0 100 300 10,0 MARELLI S105B FULVIA 818.000
8 0500 5000 26,0 100 300 10,0 MARELLI S102D 820.000/200
9 1200 4000 24,0 100 300 10,0 MARELLI S102D 820.000/200
A 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
B 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
C 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
D 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
E 1200 4000 24,0 100 300 10,0 MARELLI S105B 818.000/100
F 0500 4000 23,0 100 300 10,0 MARELLI S102B FULVIA
