Ford Kent TUNE USB w/Angled Cap

Kent Engine Naturally Aspirated W/Angled Cap (PC Programmable - Usb cable sold separate)

123Ignition
SKU:
TUNE Kent 4-A-V USB
Availability:
Usually ships within 1-3 business days
$509.95
$560.95
(You save $51.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

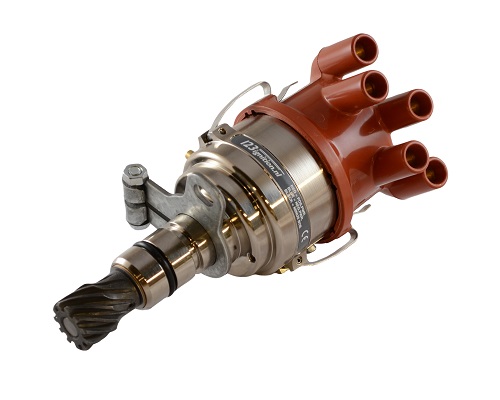

Important you are ordering an angled cap here as pictured. Not straight.

If you want to tune your engine, or you have an engine for which there is no standard distributor available.....the new 123\TUNE is the answer ! By connecting it to a computer, the end-user can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE.
( Handy, if you're driving on two different fuels, like regular fuel with LPG or with Ethanol )

The latest version of the 123\TUNE software is 2.0.0
download it now (8 Mb installer)

123fordkent-a.jpg123fordkentmodel-1-.pngwiring-negtune.pngtune-dash.jpgtune-settings.jpg



Comes with proper gear
The minimum system requirements for the 123-tune software are :

• MS Windows XP
• 1 gigahertz (GHz) processor
• 256 megabytes (MB) RAM
• free (powered!) USB port
• USB cable with mini-B plug (male)


installation manual


Here are all the features offered :


- rotation CW and CCW ( autodetect )
- for 6 Volt and/or 12 Volt cars ( autodetect )
- variable dwell constant current, fully autom. ( autodetect )
- coil current protection time-out after 1 second ( autodetect )
- spark-balancing: better than 0,5 degr. crankshaft
- for positive and negative earthed cars
( 123\TUNE-8 is for neg.earth ONLY )
- two centrifugal advance curves
( 500 to 8000 rpm )
- two vacuum-advance and boost-retard curves
( 0 to 200 kPa or -30 inHg to +15 psi )
- two MAP-start fields
- two rev.limiters ( advanced random spark stealing )
- real-time tuning under keyboard-control ( ideal for working on a rolling road )
- rpm-stopwatch ( ideal for tuning using the road itself as a rolling road )
- luxurious import-from-file and export-to-file ( curves can easily be exchanged over the internet )
- electronic "dashboard" with :

temperature gauge ( selectable in degrees Celsius or Fahrenheit )

manifold pressure ( selectable in Bar or inches Hg / Psi )

rev. counter ( 0 to 8000 rpm crankshaft )

spark-energy gauge ( primary coil current )

total-advance gauge ( in degrees crankshaft )

- available in 4- , 6- and 8- cylinder models with various sizes and shapes.



The four-cylinder model, can be supplied with a top-entry or with a side-entry cap.
The six-cylinder model however can only be supplied with a top-entry cap.
