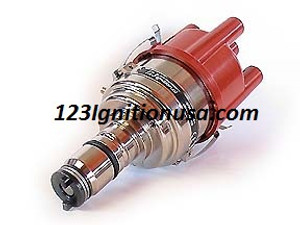

Alfa 2600 (series 106), Berlina, Spider, Sprint Switched
123Ignition
$484.95
$505.95
(You save
$21.00
)
123\ALFA-6-R-V
for Alfa Romeo > 2600 (series 106), Berlina, Spider, SprintThis unit supports vacuum advance.The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS | |
---|---|
cylinders: | 6 |
direction: | CW/CCW |
voltage: | 4,0-15,0 Volts |
range: | 500 - 8000 rpm |
temperature: | -30 to 100 Celsius |
coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
dwell: | constant current, fully autom. |
time-out: | after 1 second current is switched off |
spark-bal.: | better than 0,5 degr. crankshaft |
vacuum: | starts at 100 mmHg, ends at 10 degr. @ 300 mmHg |
max.advance: | 45 degr. crankshaft |
wiring: | red = +6V or +12V, black = '-' coil |
Curve table data
advance starts | max. advance | vac. adv. starts | max. vac. adv. | |||||
---|---|---|---|---|---|---|---|---|
curve | [rpm crankshaft] | [rpm/ | degr. crankshaft] | [mmHg] | [mmHg/ | degr.] | replaces | remark |
0 | 0500 | 5000 | 40,0 | 100 | 200 | 8,5 | BOSCH 0 231 111 034 | MARELLI S93A ALFA-2600 |
1 | 1000 | 3600 | 17,0 | 100 | 300 | 10,0 | - | 2000/6,5 |
2 | 1000 | 3000 | 17,0 | 100 | 300 | 10,0 | - | 2000/8,4 |
3 | 1000 | 2500 | 17,0 | 100 | 300 | 10,0 | - | 2000/11,0 |
4 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | - | 2000/6,0 |
5 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | - | 2000/8,0 |
6 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | - | 2000/10,0 |
7 | 1000 | 4500 | 20,0 | 100 | 300 | 10,0 | - | 2000/12,0 |
8 | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | - | 2000/6,5 |
9 | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | - | 2000/9,0 |
A | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | - | 2000/11,0 |
B | 1000 | 4500 | 23,0 | 100 | 300 | 12,0 | - | 2000/13,0 |
C | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | - | 2000/7,5 |
D | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | - | 2000/10,0 |
E | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | - | 2000/12,0 |
F | 1000 | 4500 | 26,0 | 100 | 300 | 14,0 | - | 2000/14,0 |
